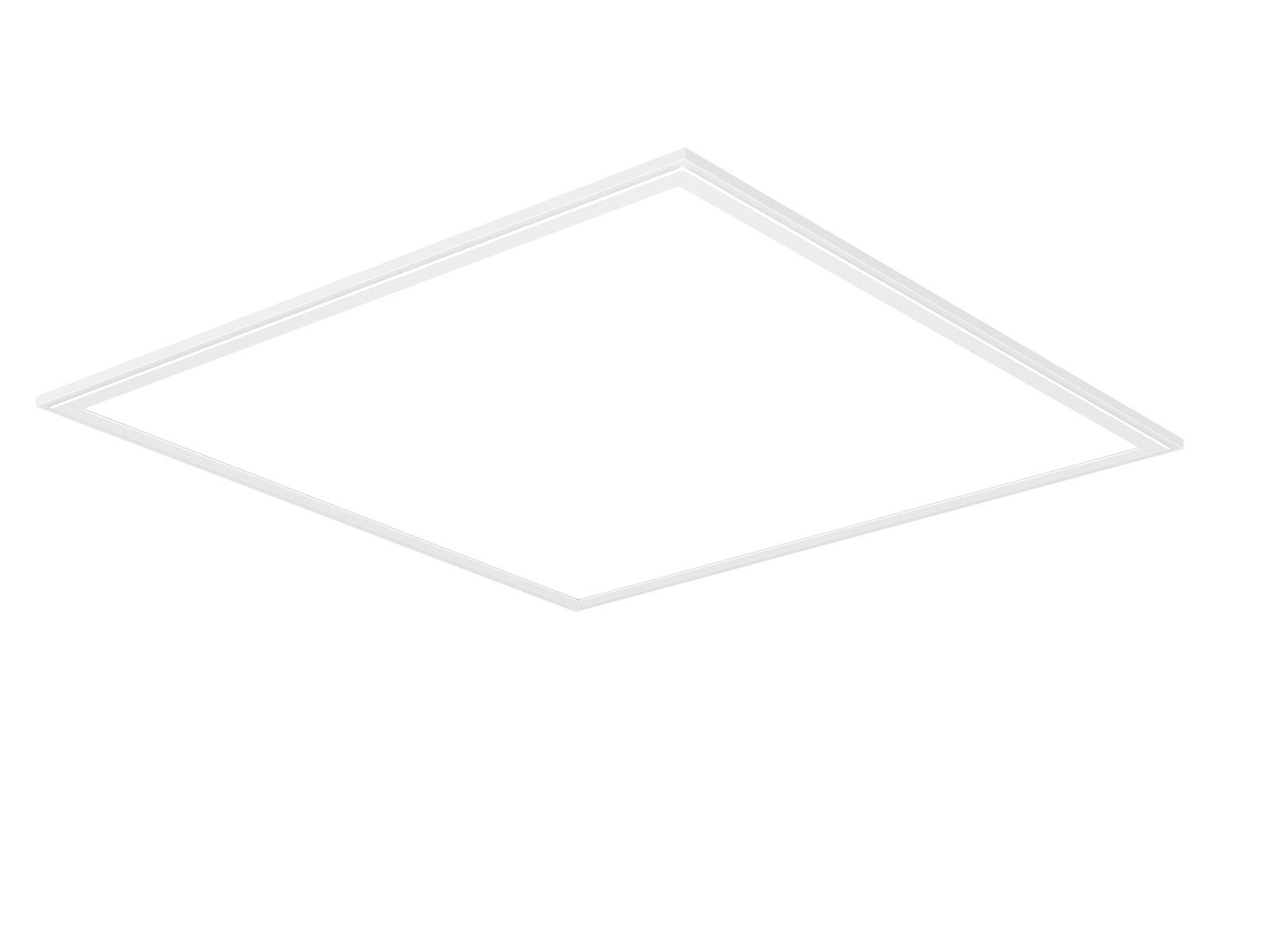

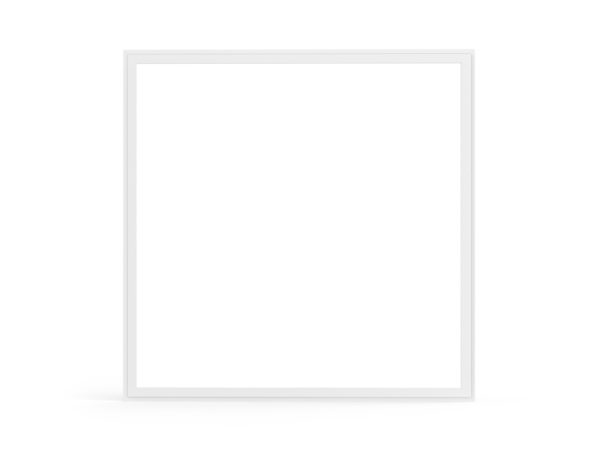

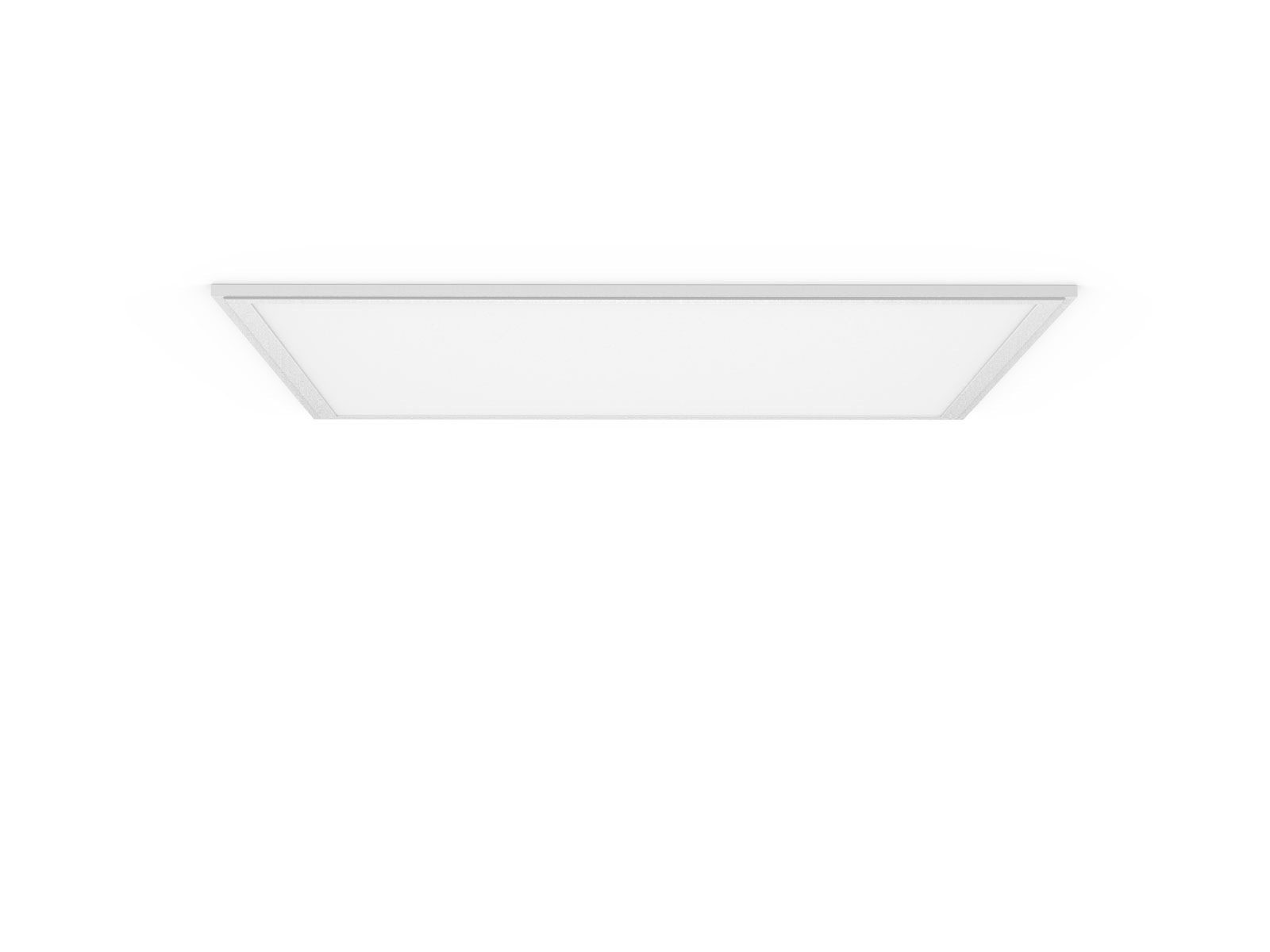

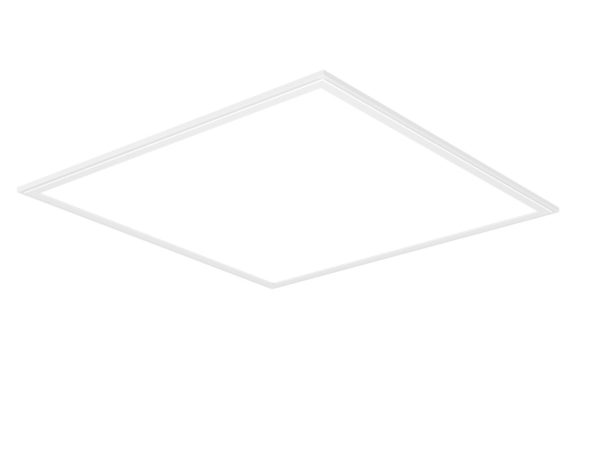

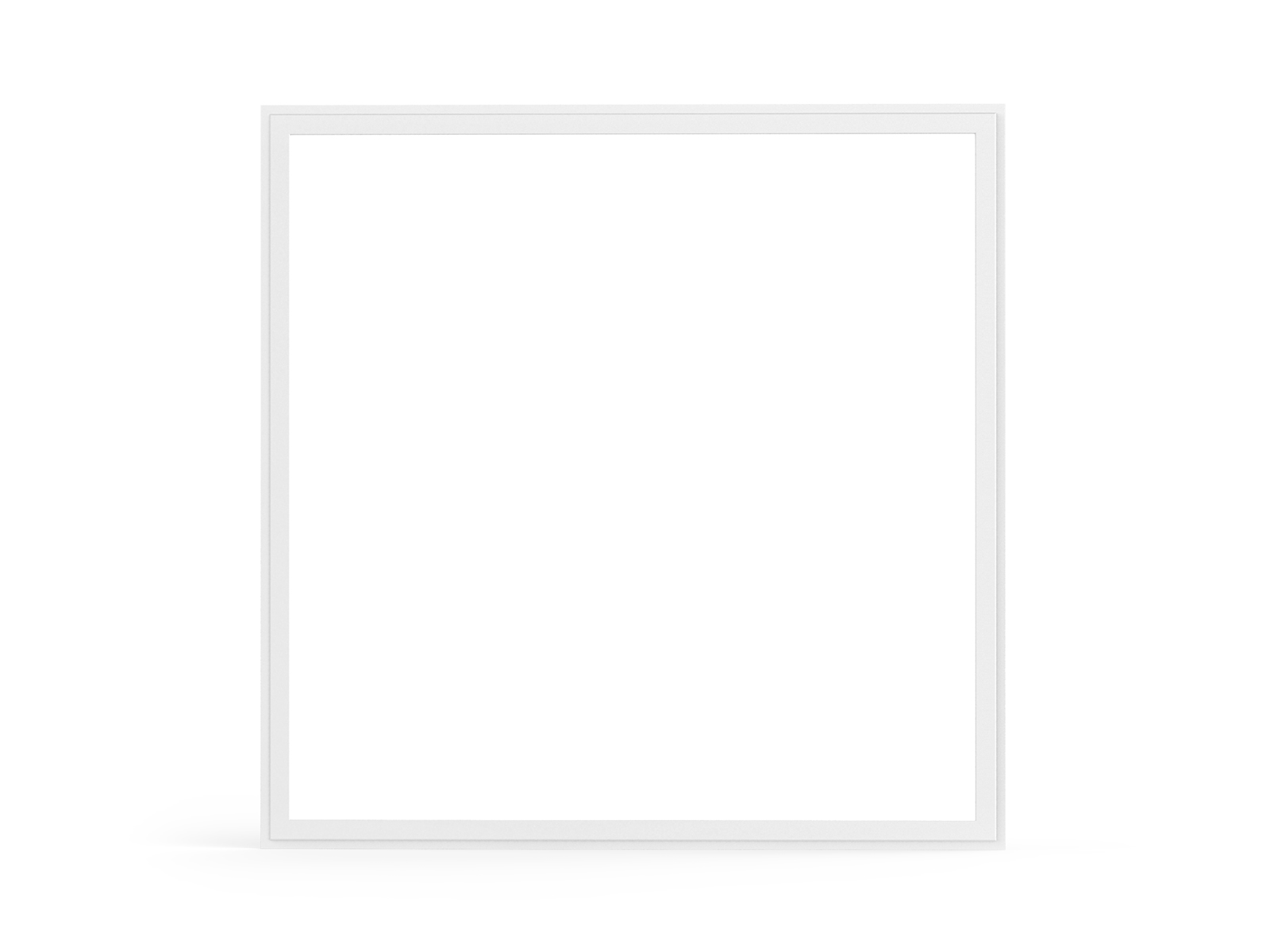

LED PANEL 2X2

Commercial ultraslim led panel are best replacement for traditional 3*24W HO T5 and 3*18W T8 fluorescent tube fixtures. square led panels adopts high quality SMD led chip, External driver comes with triac dim, it shares great popularity by perfect dimming range and great compatibility with worldwide dimmers. ultra slim led panel is not only provide bright illumination, but also helps you save more energy.

Category:

Description

Commercial ultraslim led panel are best replacement for traditional 3*24W HO T5 and 3*18W T8 fluorescent tube fixtures. square led panels adopts high quality SMD led chip, External driver comes with triac dim, it shares great popularity by perfect dimming range and great compatibility with worldwide dimmers. ultra slim led panel is not only provide bright illumination, but also helps you save more energy.

Features:

  • Up to 80% energy saving compared to standard CFL
  • Long lifetime of 40,000 hours
  • Triac dim
  • 120° wide beam angle
  • 285*285mm cutout
  • CCT: 3000K 4000K 5700K
  • No UV/IR light
  • Environment friendly, without Mercury or any other hazardous substances
  • IP40 for indoor use only
Model
LEDChip
Wattage
BeamAngle
CCT
Lumens(±5%)
Dimension
Download
LED-PN-1X1-18W-AM
SMD
18W
120°
3000K,4000K,5000K,5700K
1530-1680lm
295*295*8mm
Specification
LED-PN-1X2-20W-AM
SMD
20W
120°
3000K,4000K,5000K,5700K
2070-2248lm
595*295*8mm
Specification
LED-PN-2X2-36W-AM
SMD
36W
120°
3000K,4000K,5000K,5700K
3240-3450lm
595*595*8mm
Specification
LED-PN-2X2-40W-AM
SMD
40W
120°
3000K,4000K,5000K,5700K
3520-3840lm
595*595*8mm
Specification
